400 Watt Solar Kit

$699.99 (Save $100.00)
$599.99

Our most popular 12V kit! This 400W kit contains 2 of our high-efficiency 200W Monocrystalline panels with 18 busbars and our 40A MPPT controller that can be expanded to 600W on a 12V system. This kit can be paired with our 200AH 12V Lithium battery. For a quieter, more peaceful outdoor experience, this kit is the perfect add-on to your off-grid solar trailer, RV, or boat!

  Delivery policy

Items will ship directly from the manufacturer to You.

  Return policy

30 Day Return Policy

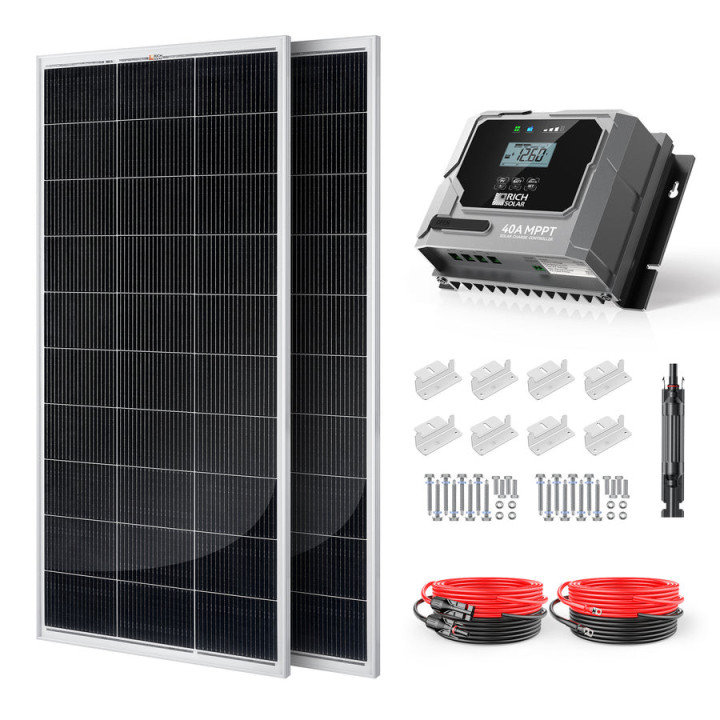

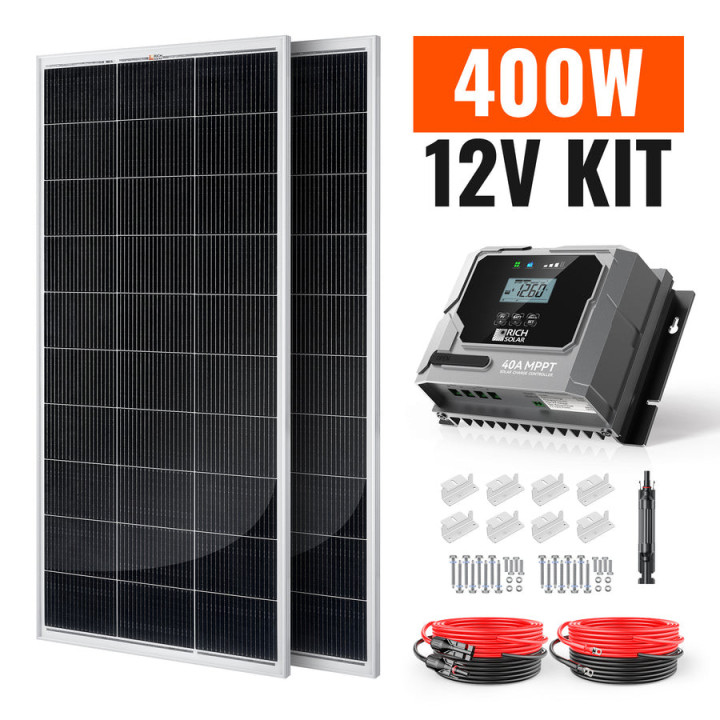

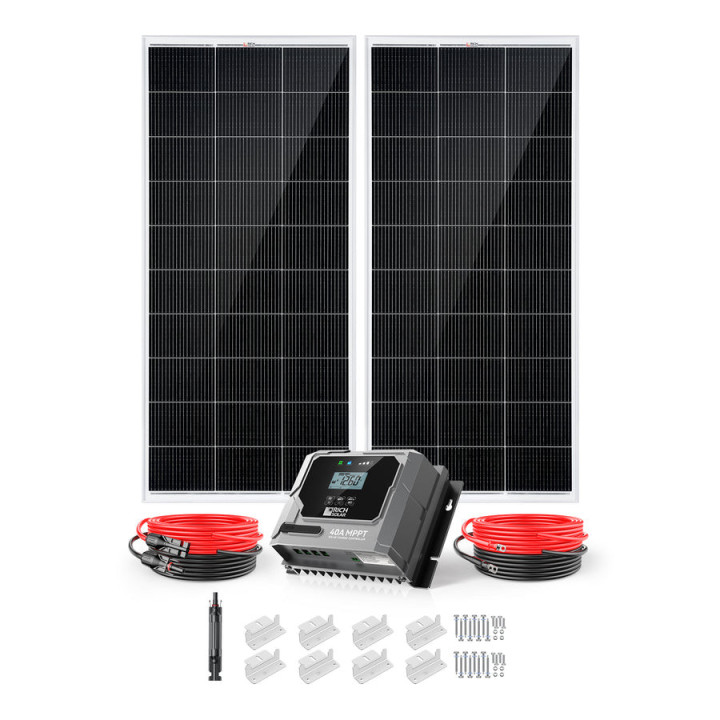

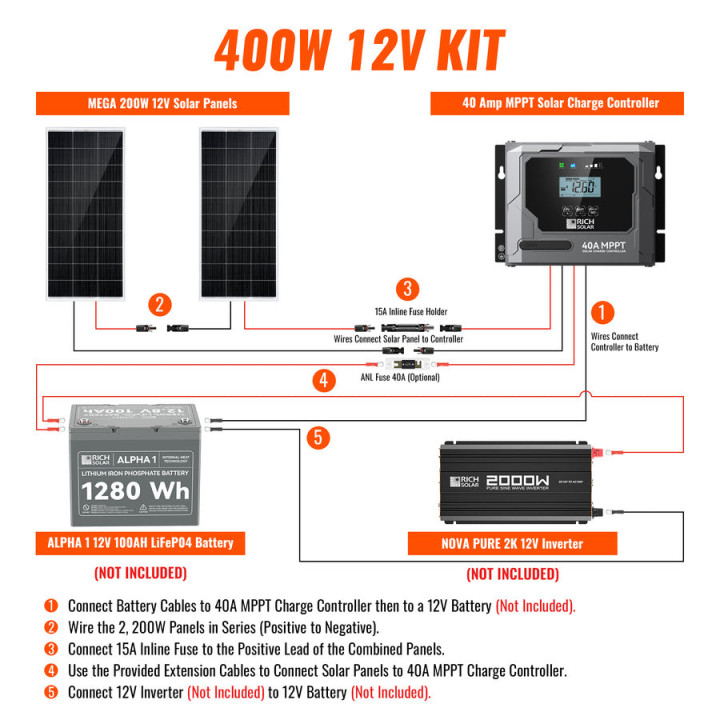

Kit Includes:

  • 2 x 200 Watt Monocrystalline Solar Panel(RS-M200)
  • 1 x 40A MPPT Solar Charge Controller(RS-MPPT40P)
  • 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
  • 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
  • 1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810)
  • 1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery (RS-810)
  • 2 x Mounting Z Brackets (one set of 4)(RS-ZB4C)
  • 1 x 15A Inline Fuse Holder with Fuse(RS-SC15F)

MEGA 200 Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

  • No. of Panels: 2 x MEGA 200 Watt Solar Panels
  • Wattage Per Panel: 200W
  • Total Wattage of Panels: 400W

Features:

  • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
  • Excellent low-light performance even on early mornings, evenings, and cloudy days.
  • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
  • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty:

  • 25-year limited power output warranty
  • 10-year workmanship warranty

Specifications:

  • Maximum Power(Pmax): 200W
  • Maximum Power Voltage(Vmp): 18.4V
  • Maximum Power Current(Imp): 10.9A
  • Open Circuit Voltage(Voc): 21.8V
  • Short Circuit Current(Isc): 11.6A
  • Temperature Range: -40 ~ +185°F
  • Maximum Series Fuse Rating: 15A
  • Weight: 24 lb
  • Dimensions: 58.7 x 26.8 x 1.2 in


BRAVO 40 Amp MPPT Solar Charge Controller

Features:

  • MPPT
  • Tracking Efficiency Above 99.5%
  • Charge Conversion Efficiency as high as 98%
  • 12V/24V DC System Self-Adaptation
  • Reverse Discharge Protection
  • Targeted for Accuracy
  • Overvoltage Protection
  • Common Negative Connection
  • Charging Data Storage
  • Conformal Coating For Inside Board
  • Designed According to UL1741, EN/IEC 62109 1
  • In-house Design And Manufacture
  • Extensive Internal Electronics In-Circuit Protections And Safety Protections
  • Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
  • Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections

Warranty:

  • 2-Year Warranty

Specifications:

  • System Nominal Voltage: 12/24V Auto
  • Max. PV Open Circuit Voltage: 100VDC
  • Charging Technology: MPPT
  • Max PV Charging Current: 40A
  • Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
  • Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
  • Housing Case Color: Black / Grey
  • IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
  • Net Weight: 1.17kg / 2.58lb
  • Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in

  • Brand
  • Reference
    RS-K4004
