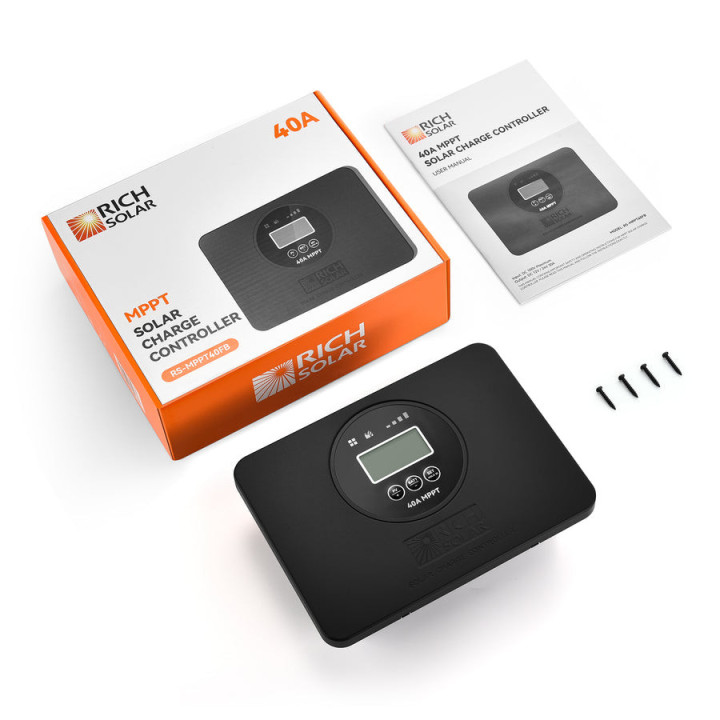

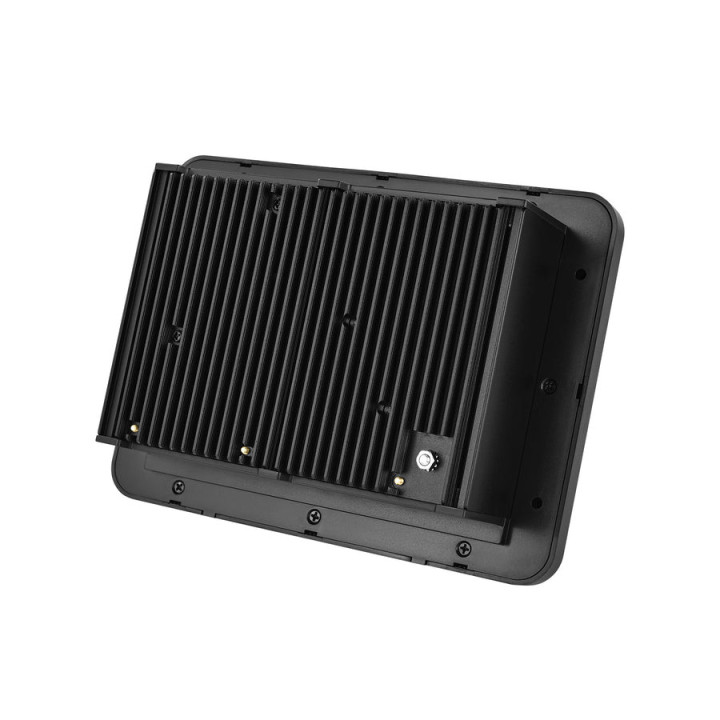

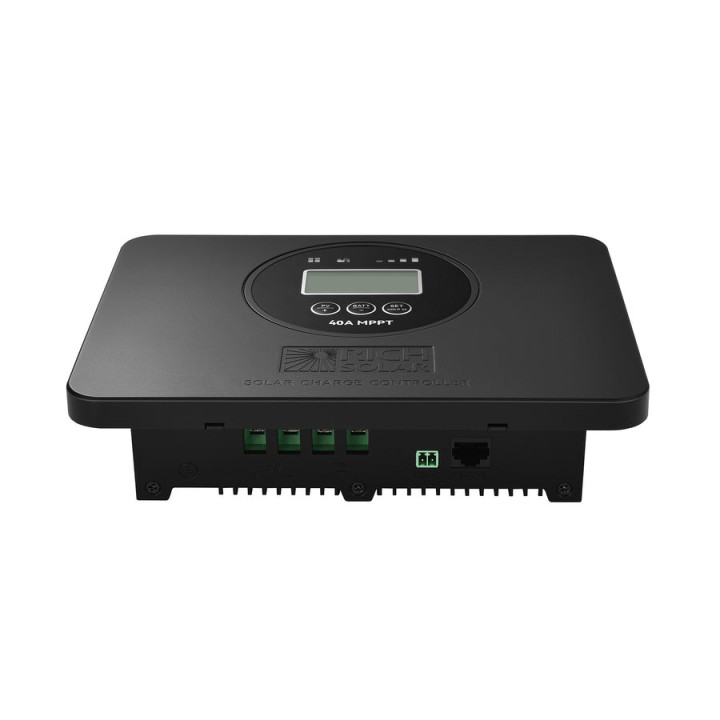

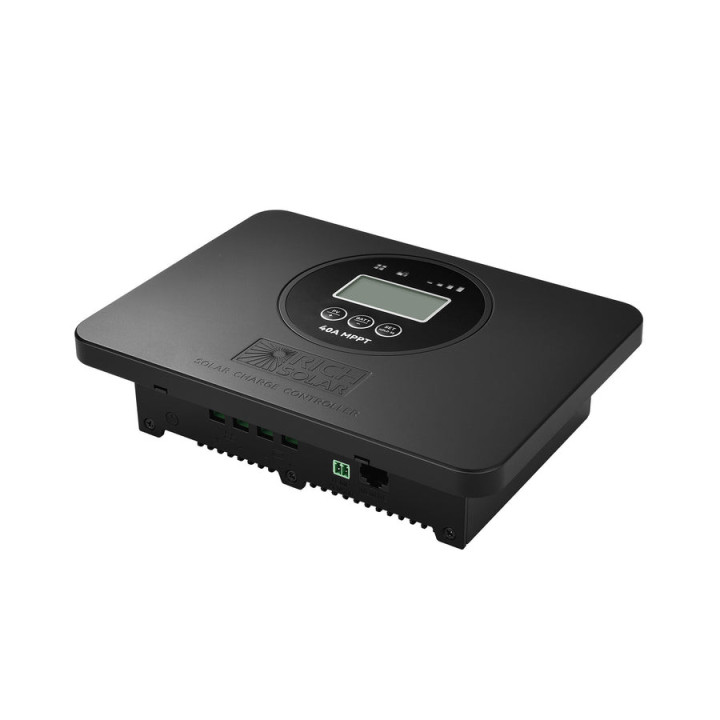

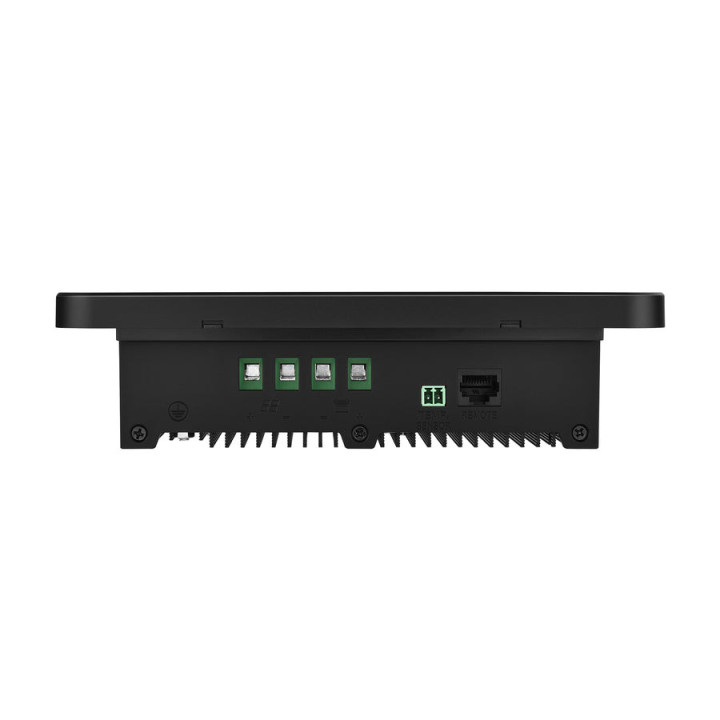

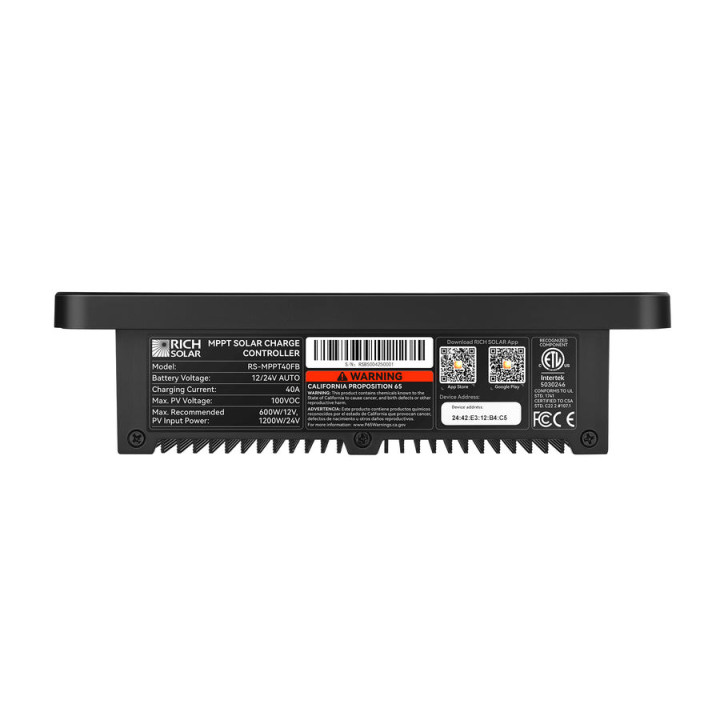

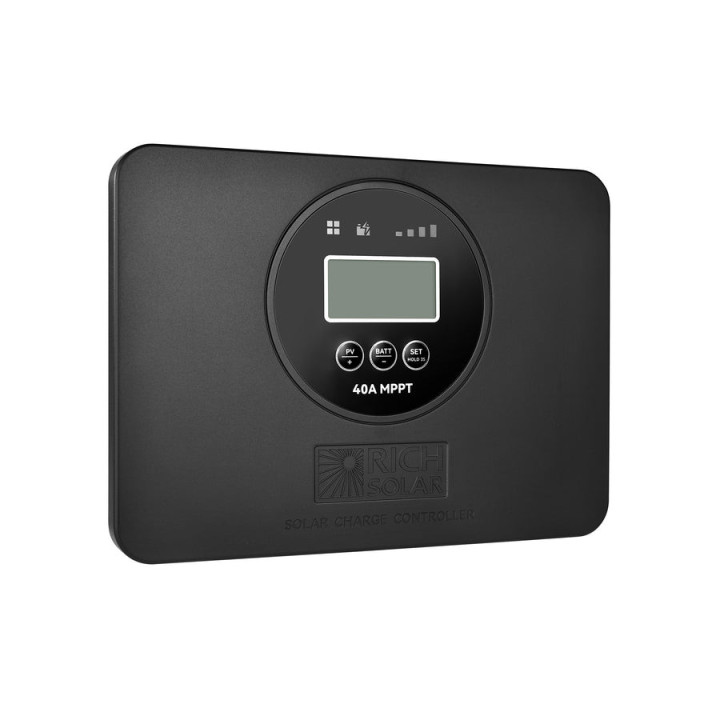

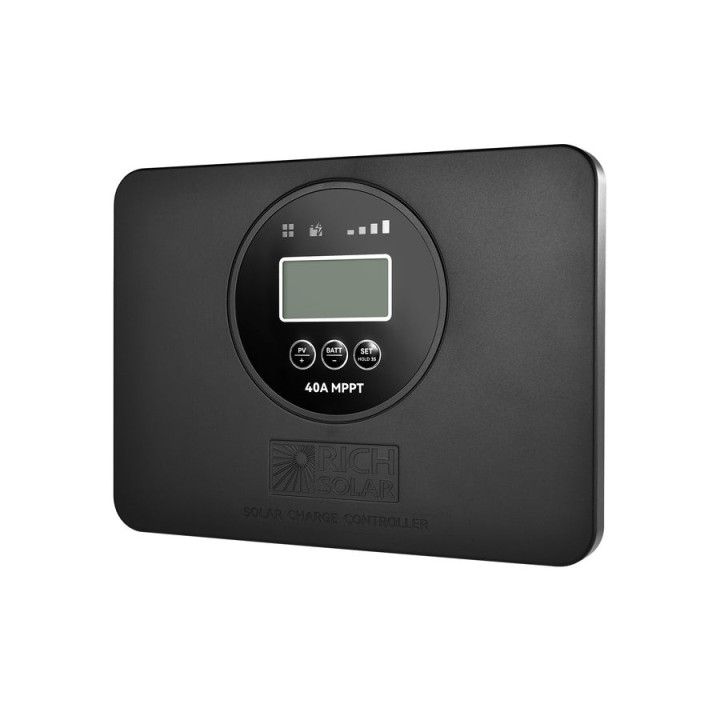

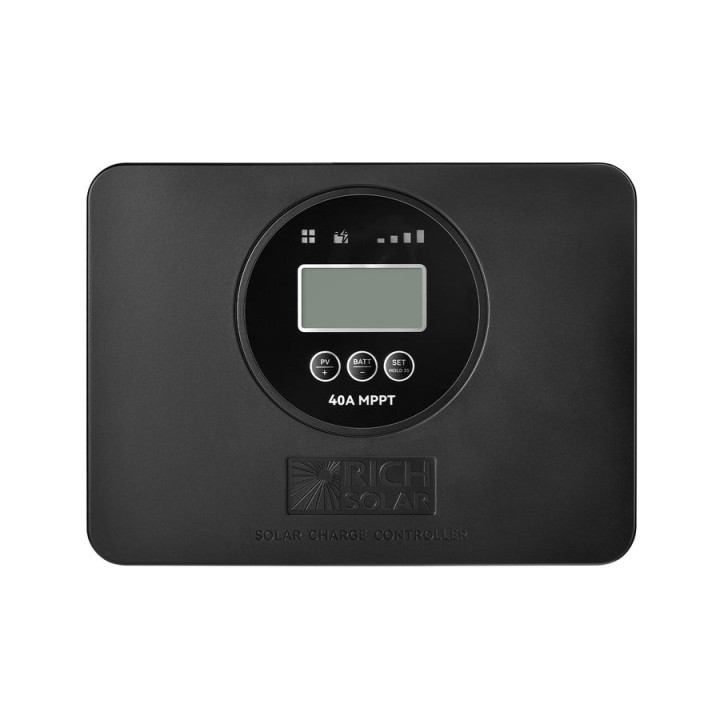

BRAVO PRO 40 | Premium 40A 12V/24V MPPT Flush Mount Solar Controller

$249.99 (Save $40.00)
$209.99

The perfect replacement and upgrade for the in-wall controllers that come stock from the factory for many RV's.  Stock controllers can waste 30 to 50 watts per panel!  Upgrade and get better performance, and more power!

  Delivery policy

Items will ship directly from the manufacturer to You.

  Return policy

30 Day Return Policy

Features

High-Efficiency MPPT Charging

  • 99.5% MPPT Tracking Efficiency – Maximizes available solar energy harvest
  • 98% Conversion Efficiency – Reduces power loss for higher system efficiency

Intelligent System Compatibility

  • Auto 12V / 24V Detection – Simplifies installation and setup
  • Wide Battery Compatibility – Supports GEL, AGM, WET, CALCIUM, LiFePO₄, LTO, and LCO

Smart Monitoring & App Control

  • LCD Display – Real-time system status at a glance
  • Bluetooth + App Support – Remote monitoring and parameter adjustment via smartphone

Reliable Built-In Protection & Certifications

  • Multi-Level Safety Protection – Protects against over-voltage, reverse polarity, short circuits, and overheating
  • Certified Safety & Compliance – ETL, CE, FCC, RoHS

Specifications

  • System Nominal Voltage:  12V/24V Auto
  • Maximum Solar Input Current: 40A
  • Maximum Charging Current: 40A
  • Recommended Solar Input Power: 600W(12V)/1200W(24V)
  • Solar Input Voltage Range:  8-100V
  • Standby Current:  10mA
  • Charging Technology:  MPPT
  • MPPT Voltage Tracking Range:  15-72VDC
  • MPPT Efficiency:  99.5%
  • Conversion Efficiency:  98%
  • Battery Compatibility:  GEL / AGM / WET / LFP / LTO / LCO / Crystal / Calcium / Customizable Battery
  • IP Grade:  IP43
  • Operating Temperature:  -13℉ ~ 122℉
  • Bluetooth:  Yes
  • Options:  External Battery Temperature Sensor; External Digital Remote Display
  • Dimensions:  8.3 × 6.1 × 2.2 in
  • Weight:  1.8 lb
  • Certifications:  ETL, CE, FCC, RoHS

Warranty Info

  • Brand
  • Reference
    RS-MPPT40FB
